제품소개

AC POWER SOURCE 분야의 선두기업

AC POWER SOURCE
전압, 주파수가변장치

AFC - Series (전원공급장치, 주파수변환기)

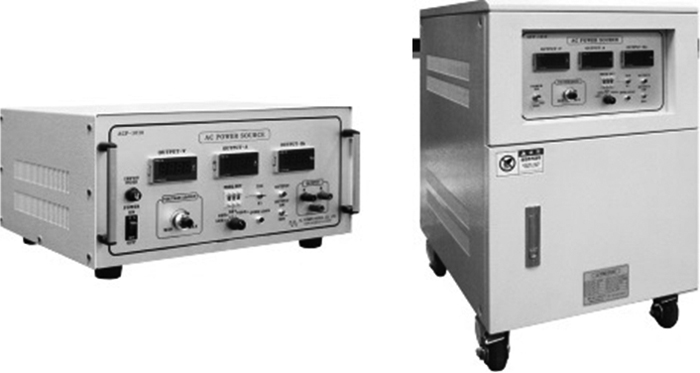

제품 사진

P.W.M (Pulse Width Modulation) TYPE
Digital Control 방식
I.G.B.T High Frequency Switching
HIGH Efficiency & Low Audible Noise
Constant Voltage : ±1%
Constant Frequency : ±0.1%
반도체 방식의 전압가변으로 기존 Slicac 방식의 부하 (Load) 인가시 전압 변동의 문제점이 없음.
(Semiconductor type Voltage Variable, No Voltage variation for existing Slicac type Loading)

사양 (Specifications)		CAPACITY	W(mm)	D(mm)	H(mm)
Circuit TYPE	P.W.M (Pulse Width Modulation) TYPE	1KVA	360	570	680
Input Voltage	220V or 380V or (지정전압), 1Phase or 3Phase	3KVA	360	570	680
Input Frequency	50Hz or 60Hz	5KVA	360	570	680
Output Voltage	0~300V (1Phase) or 0~600V (3Phase)	7.5KVA	420	700	790
Voltage Stability	≤ ±1%	10KVA	440	760	825
Output Frequency	50Hz, 60Hz, 45~65Hz(지정주파수가능)	15KVA	440	760	825
Frequency Stability	±0.1%	20KVA	500	850	930
T.H.D	within ±3%	30KVA	550	1000	1000
Protector	Electronic Circuit / Over Load / Short Ciruit	50KVA	800	1100	1500
Frequency Meter	LED Digital Display	75KVA	850	1300	1600
V.A - Meter	True RMS LED Digital Display	100KVA	900	1300	1850
Temperature	-20 ~ 60 °C	200KVA	1000	1450	2000
Humidity	0 ~ 90%	300KVA	1200	1500	2000
*option	Output Voltage : 0 ~ 1000V
*option	Remote Control Function (RS-232c or 485), 아날로그전압제어

ACPF - Series (전원공급장치, 주파수변환기)

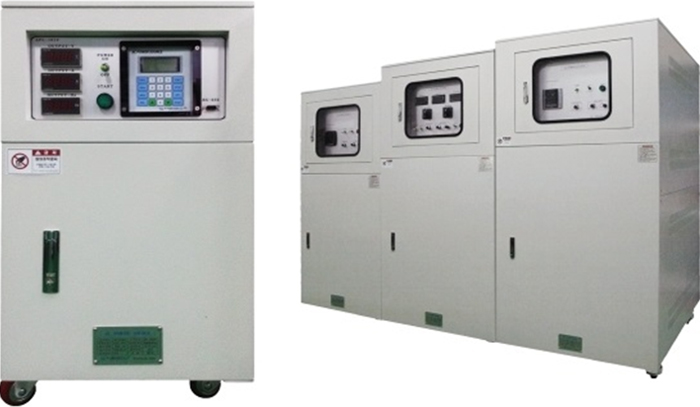

제품 사진

Multi - P.W.M (Pulse Width Modulation) TYPE
Digital Control 방식
I.G.B.T High Frequency Switching
HIGH Efficiency & Low Audible Noise
Constant Voltage : ±1%
Constant Frequency : ±0.1%
반도체 방식의 전압가변으로 기존 Slicac 방식의 부하 (Load) 인가시 전압 변동의 문제점이 없음.
(Semiconductor type Voltage Variable, No Voltage variation for existing Slicac type Loading)

사양 (Specifications)		CAPACITY	W(mm)	D(mm)	H(mm)
Circuit TYPE	P.W.M (Pulse Width Modulation) TYPE	1KVA	360	570	680
Input Voltage	220V or 380V or (지정전압), 1Phase or 3Phase	3KVA	360	570	680
Input Frequency	50Hz or 60Hz	5KVA	360	570	680
Output Voltage	0~300V (1Phase) or 0~600V (3Phase)	7.5KVA	420	700	790
Voltage Stability	≤ ±1%	10KVA	440	760	825
Output Frequency	47~500Hz Variable	15KVA	440	760	825
Frequency Stability	±0.1%	20KVA	500	850	930
T.H.D	within ±3%	30KVA	550	1000	1000
Protector	Electronic Circuit / Over Load / Short Ciruit	50KVA	800	1100	1500
Frequency Meter	LED Digital Display	75KVA	850	1300	1600
V.A - Meter	True RMS LED Digital Display	100KVA	900	1300	1850
Temperature	-20 ~ 60 °C	200KVA	1000	1450	2000
Humidity	0 ~ 90%	300KVA	1200	1500	2000
*option	Output Voltage : 0 ~ 1000V
*option	Remote Control Function (RS-232c or 485), 아날로그전압제어

ACP - Series (전원공급장치, 주파수변환기)

제품 사진

P.A.M (Power Amplifier Modulation)
CPU 제어방식
Digital Control 방식
Remote Control 가능 (RS-232C or 485) *option
출력 주파수 안정도 ±0.01%
TOTAL POWER 개념의 과부하 보호기능
부하 조건에 제약 받지 않는 신뢰성

사양 (Specifications)		CAPACITY	W(mm)	D(mm)	H(mm)
Circuit TYPE	P.A.M (Power Amplifier Modulation)	200VA	440	350	220
Input Voltage	220V or 380V or (지정전압), 1Phase or 3Phase	500VA	440	500	250
Input Frequency	50Hz / 60Hz	1KVA	400	620	650
Output Voltage	0~300V (option : 0~1000V), 1Phase or 3Phase	2KVA	460	620	720
Voltage Stability	≤ ±0.5%	3KVA	480	700	870
Output Frequency	40~999Hz (option : 1000~3000Hz)	5KVA	500	800	970
Frequency Stability	≤ ±0.01%	7.5KVA	600	850	1100
T.H.D	≤ ±2%	10KVA	650	900	1300
Protector	Electronic Circuit / Over Load / Short Ciruit	15KVA	750	950	1450
Frequency Meter	LED Digital Display Res 0.1Hz	20KVA	800	1000	1600
V.A - Meter	True RMS LED Digital Display
Temperature	0 ~ 40 °C
Humidity	0 ~ 90%
Output Wave	True Sine Wave
*option	Output Voltage : 0~1000V or 희망전압 가능 (expected Voltage available)
*option	Output Frequency : 3000Hz
*option	Output Metering Function
*option	RS-232c or 485
